Precision Parts Manufacturing Production Line

  • You are currently here!
  • Home
  • Solutions
  • Production Process
  • Precision Parts Manufacturing Production Line

CNC Machining, Precision Machining

Weiyu provides services ranging from metal material procurement, molds, fixtures and fixture planning, CNC precision machining to surface treatment. On the metal processing production line, we use vertical and horizontal turning and milling machining centers to assist customers in solving the metal processing needs of high-precision and complex metal parts.

We currently have multiple vertical and horizontal milling machining centers, CNC lathes, and turning and milling centers, which can complete all comprehensive machining processes at once. Not only the current processing scale, but we are also continuously expanding our machining center production line every year. In addition to the current high torque metal processing machines, we have also expanded high-speed processing machines to enhance the high-precision machining capability of aluminum alloys.

Our customers benefit from our best processing solutions.

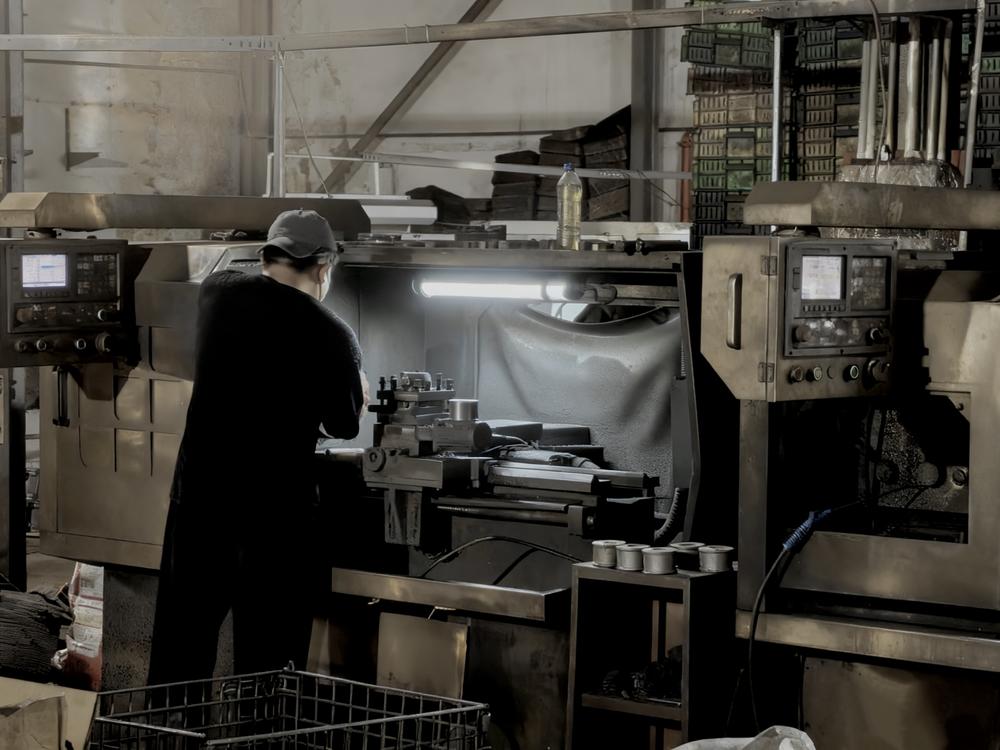

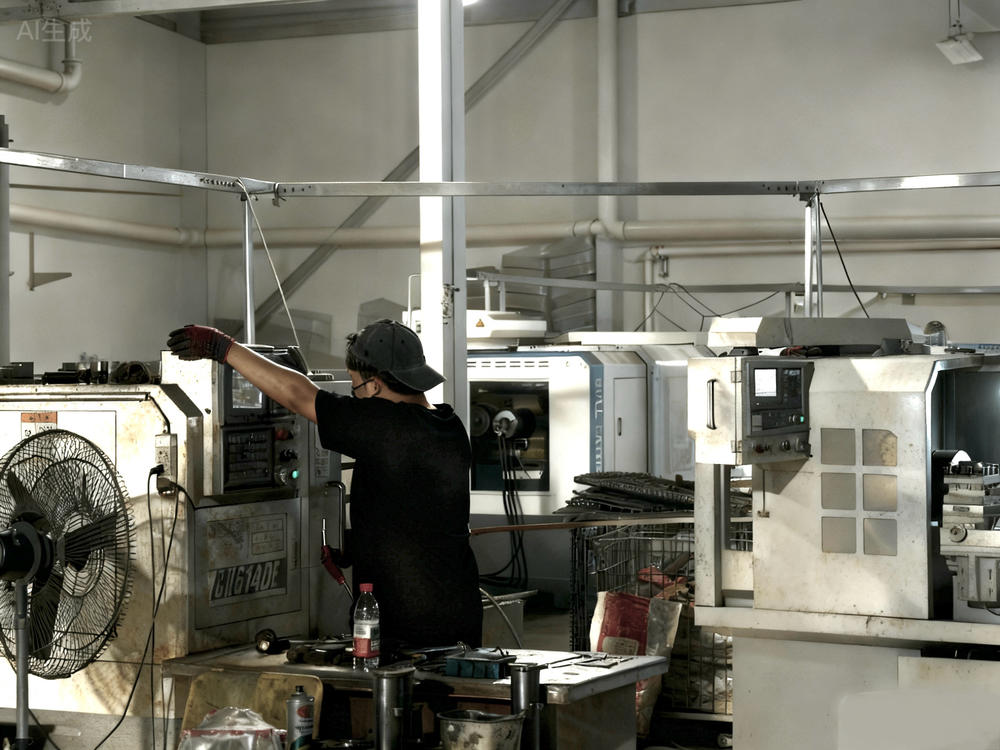

Our machining department has vertical and horizontal turning and milling machining centers and CNC turning machines, which can complete the comprehensive machining processes at one time.

Fourth Axis Flip Positioning Machining Capability

In addition to the XYZ three-axis machining capability, the milling machine also adds a fourth axis (rotation axis) to provide multi axis flipping machining capability. Compared with three-axis machining machines, four axis vertical machining centers require flipping, picking and placing, loading and unloading during machining. They can integrate various processes of complex workpieces on the same equipment for one-time multi-faceted machining. This can reduce errors and time-consuming repositioning, lower costs, and improve manufacturing quality.

Four axis machining centers can meet customers' precision requirements, especially when the machining angle of workpieces is limited, such as wind energy equipment parts, engineering machinery parts, or other special parts.

Realize rapid mold change, improve production quality and efficiency.

Manufacturing of Precision Technology Industry Equipment Components


In the manufacturing of precision parts, we use high-tech horizontal milling machining centers to provide customers with high-precision workpiece prototypes and production. It has advanced processing technology with high dynamic performance, high rigidity, high precision, and automation core. Based on the complexity and requirements of the workpiece, standard automation systems will be activated or customized automation solutions will be upgraded for flexible production systems.

Machining Equipment

1. Machining Equipment List
Types of Equipment Brand/Spec Working Range Q’ty
X Axis Y Axis Z Axis
Horizontal CNC Lathe SK520 450mm - 900mm 10
Horizontal CNC Lathe CK6165E 550mm - 900mm 3
Horizontal CNC Lathe CK6145E 350mm - 700mm 6
Horizontal CNC Lathe CXF460-G 400mm - 400mm 3
Horizontal CNC Lathe DS6150B 400mm - 900mm 10
Four-axis Machining classenter VSC-850 800mm 500mm 500mm 1
Four-axis Machining C sectionenter CY-KX850 800mm 500mm 550mm 1
Vertical CNC Lathe BVL80 700mm - 1500 1
1-1 Maximum Machining Size
  1. 1. Vertical Machining Center:
    Products of machining range under length of 1300mm and width of 700mm.
  2. 2. Horizontal Machining Center:
    products with a processing diameter within 700mm.
1-2 Process Capability / Machining Accuracy

For machining aperture, the roundness could be controlled under 0.005mm, and the straightness could be controlled under 0.005mm.
The distance between each aperture could be controlled under 0.01mm (special request), or under 0.02mm (normal request).
